Solar Tech Tip – Over-sizing solar systems

Benefits of over-sizing solar systems

Over-sizing of solar systems means that more solar panels are installed than the rated capacity of the inverter. An example would be installing 4kW (16) solar panels and connecting them to a 3kW inverter.

By doing this you won’t reduce you inverter life, nor will you jeopardise you inverter warranty. In fact over-sizing is recommended by inverter companies such as SMA and Fronius as a way to get the maximum return on your solar system.

There are a number of good reasons for over-sizing which I shall briefly cover.

1.Make better use of the inverter’s AC output
Solar panels will produce their rated power under certain conditions, known as STC (Standard Test Conditions). When these conditions are not met the output from the solar panel will be reduced. By installing more solar panels the inverter will be working at its full potential.

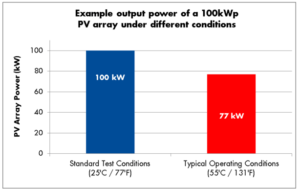

Example Output Power

2.Lower the cost of energy delivered
Over-sizing a PV array will increase the cost of PV modules and array racking for a system. It will not however increase the costs for the other components in the system.
This means that more energy can be generated at a lower cost.

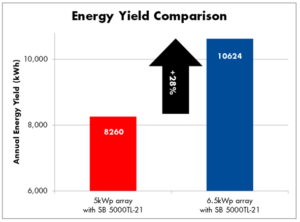

The graph below published by SMA shows an increase in energy delivered of 28%, while the cost of the over-sizing is only an additional 10%

Energy Yield Comparison

3.Reduce inverter costs
An inverter with a smaller capacity will in most cases be less expensive than a larger inverter, reducing overall system costs.

4.Make the most of East- West PV arrays
In cases where the northern aspect is shaded or limited in space, over-sized East -West arrays are able to deliver electricity during the morning and afternoon peaks.

5.Maximise the Government incentive
Government rebates for solar are dependent on the amount of solar panels installed. This means that you will get a higher rebate while using less balance of system equipment  and with reduced inverter costs.

6.Install enough capacity to allow for battery storage.
Cheaper batteries are on their way. By installing more solar panels now, homeowners can generate enough electricity for all their needs, without having to pay installation costs twice.

The benefits for over-sizing are clear. Current regulations restrict over-sizing to 1.33 times the capacity of the solar inverter.
